Description
fatshark hdo2 goggles FatShark Dominator HDO2 FPV GogglesFatShark Dominator HDO2 FPV Goggles SPECIFICATIONS Wheelbase: Bottom Plate Upgrade Parts Accessories: Adapter Tool Supplies: Cutting Technical parameters: Value 10 Size: as show Remote Control Peripherals Devices: Remote Controller RC Parts & Accs: Connectors Wiring Quantity: 1 pcs Origin: Mainland China Model Number: Dominator HDO 2 Material: Composite Material Four wheel Drive Attributes: Assemblage For Vehicle Type: Helicopters FatShark Dominator
FatShark Dominator HDO2 FPV Goggles SPECIFICATIONS
Wheelbase: Bottom Plate
Upgrade Parts/Accessories: Adapter
Tool Supplies: Cutting
Technical parameters: Value 10
Size: as show
Remote Control Peripherals/Devices: Remote Controller
RC Parts & Accs: Connectors/Wiring
Quantity: 1 pcs
Origin: Mainland China
Model Number: Dominator HDO 2
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Helicopters

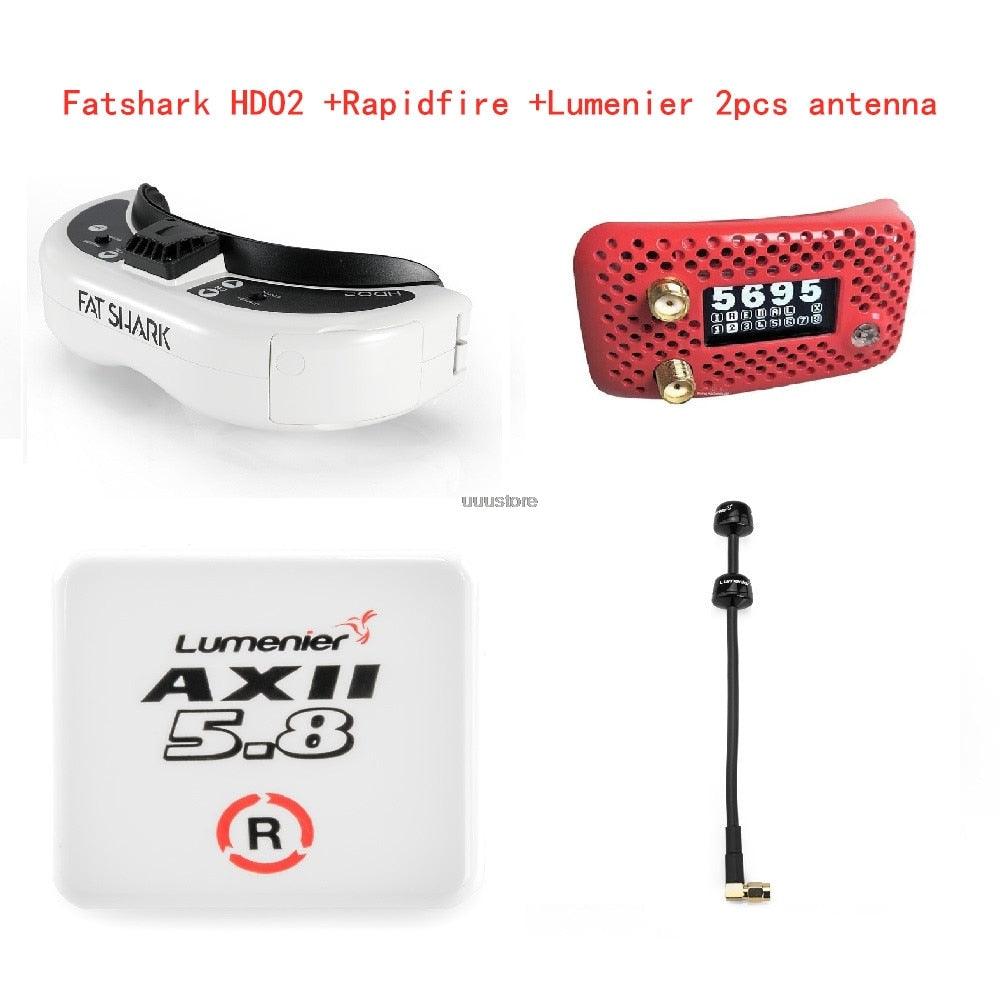

FatShark Dominator HDO2 Goggles with Immersionrc Rapidfire and Lumenier 5.8g AXII Patch And lumernier Double AXII ANTENNA
Pay attention: We will ship according your choose,
If you choose combo,we will ship Fatshark HDO2 Goggles + Immersionrc Rapidfire
+ Lumenier 5.8g Patch antenna + Lumenier AXII antenna
If you choose Single product,we will ship single product.
1.Fatshrk Dominator HDO 2 Description:
Brand: FatShark
Model: Dominator HDO 2
Optics
FOV (field of view): 46 degrees diagonal
IPD (interpupillary distance): 54 to 74 mm (adjustable)
Focus: +2 to -6 diopters (adjustable)
Display
* Two 0.5” OLED displays
* Resolution 1280 X 960
* NTCS/PAL auto selecting
* AV Mode 4:3
* AV Mode 16:9
* HDMI Mode 16:9
Audio
* Stereo
User Controls
* Channel Selection
* Volume Control
* Mode Selection
* Display Control (Brightness and Contrast)
* DVR Control
* Power Button / Fan Control
Electrical
* Power Supply:
* 7 – 13V input voltage (2S – 3S Supply)
* Power Consumption: 320mA @ 7.5V input power (no RX module)
* 770mA @ 7.5V input power (Rapid
* Analog DVR: MicroSD support to 32 GB
* Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
* File playback (native recording, no codec support)
* Upgradeable via SD card
Battery
7.4V, 1.8A 18650 Battery Case (optional))
Interface
* 3.5mm AV in/out port
* Power input port
* 3.5mm 3p earphone port
* MicroSD
* RF Module Bay
* HT connector 3 pin internal connection
* Power Button
Mechanical
Ergonomic molded headset w/ adjustable headband
Dimensions: 169.2 x 80 x 45.5 mm
Weight: 206.8 g
Things just got personal.
The Dominator HDO2 headset launches as the successor to the much-loved Dominator HDO. The HDO2 uses big 1280 x 960 OLED panels to provide a dramatically improved image with a 46-degree field of view. Display customization is now possible using a new OSD with expanded controls. The HDO2 can be further personalized with adjustable focus, adjustable IPD, adjustable face plate curvature, selectable image ratio, and a configurable power button. The HDO2 is the perfect headset for an experienced pilot looking for the best flight experience.
\
2.ImmersionRC Rapidfire
The Lumenier AXII 5.8GHz Patch Antenna offers you the highest performance you can get from a mini patch antenna designed for FPV. The Lumenier AXII Patch has an industry leading 8.4 dBiC gain for long range flying and excellent penetration through objects compared to standard omnidirectional FPV antennas. It also features a best in class 95% efficiency (most mini patch antennas are below 75%), which means you get amazing performance and the best picture in your video goggles. Lumenier, designed in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you the Lumenier AXII 5.8GHz Patch Antenna.
The Lumenier AXII Patch Antenna features an ultra-thin active element suspended above the reflector, which allows for a higher velocity factor and lowers losses. This technology along with precision manufacturing results in a top of the line receiving antenna. It works great on both video goggles or ground stations for 5.8GHz, and capabale of receiving signal up to many miles away.
Features
Circularly Polarized
High 8.4 dBiC
Incredible 95% efficient
Wide 76 degree beam width
Compact low profile design on your goggles
Designed for goggles or base stations
Specifications
Frequency: 5.8GHz
Bandwidth: 220 Mhz
Gain: 8.4 dBiC
Beam Width: 76°
Right Hand Circularly Polarized
SMA Connector (Fits Fat shark Goggles and others using SMA)
Dimensions: 35mm x 35mm x 9mm (20mm with SMA)
Weight: 10grams
4.Lumenier Double AXII
Improved Features Over Standard AXII V1
- Significantly Improved Range with a Higher Gain (4.7dBiC Gain)
- Wider Bandwidth (5.3-6.2GHz)
- Cleaner Signal And Better Rejection to Interference
- More Durable - Improved Injection Molded Housing
- Virtually Perfect Axial Ratio
Precision engineering has given this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the Double AXII 2 has an amazing max gain of 4.7dBiC, a true upgrade over the original AXII.
Super Tough
Antennas take a lot of abuse, especially when put onto a quad. The AXII 2's robust antenna housing is made out of a new injected molded polycarbonate, and ultra-sonically welded shut. This has significantly improved the durability of the AXII housing. The 120mm long semi-rigid RG402 cable allows for 90 degrees or more of freedom. The SMA connection is reinforced with a metal collar crimped to the base for extra support.
Note: When installing, secure the antenna via the SMA connector, do not twist the cap.
Also works great on the DJI digital FPV goggles! Just make sure to purchase RP-SMA to SMA adapters so they can properly mount to the RP-SMA connection the goggles.
